Packaging Crisps

In this set of tutorials, you will create a system in Enact to evaluate packaged crisps.

This Getting Started tutorial assumes an existing hierarchy design, which you may not have, and may not want, in your Enact system. The default Enact hierarchy looks like this:

This tutorial expects the following hierarchies:

To match the expected hierarchy, please add the following:

  • Slicing. Cheery Crisps > Crisps Division > North America Region > Fairfax > FA - Processing Department > FA - Slicing Area > FA - Slicing Unit
  • Frying. Cheery Crisps > Crisps Division > North America Region > Fairfax > FA - Processing Department > FA - Frying Area > FA - Frying Unit
  • Seasoning. Cheery Crisps > Crisps Division > North America Region > Fairfax > FA - Processing Department > FA - Seasoning Area > FA - Seasoning Unit
  • Packaging. Cheery Crisps > Crisps Division > North America Region > Fairfax > FA - Packaging Department > FA - Packaging Area > FA - Packaging Unit

For more information, please see Creating Processes.

Download Images File: GSImagesPackaging.zip

Please download and unzip the file, saving the images in a folder that you can access (for example, the Windows Downloads folder).

In this tutorial, you will create the following:

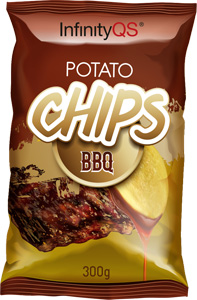

  • Eight parts (Bag - BBQ - 50g, Bag - BBQ - 300g, Bag - SS - 50g, Bag - SS - 300g, Crisps - BBQ - 50g, Crisps - BBQ - 300g, Crisps - SS - 50g, Crisps - SS - 300g)

  • One process (FA - Packaging Line 004)

  • Six variable features (Tear Strength, Gross Weight, Net Weight, Nitrogen Pressure, Tare Weight, Tare Weight - Avg)

  • One defective feature (Label Check)

  • Sixteen sets of specification limits
  • One process model with two input part families, one output part family and four part recipes

  • Three data collections (Tare Weight, Bag Quality Checks, Net Weight)

  • Two calculations (Tare Weight - Avg, Net Weight)
  • One checklist (Packaging Pre-Op Checks)


Next Step: Descriptors (Packaging)
