Collecting Data

1. Select Access Menu and then select Dashboard.
2. (If necessary) In the dashboard, select Select Dashboard , and then select Work Dashboard .

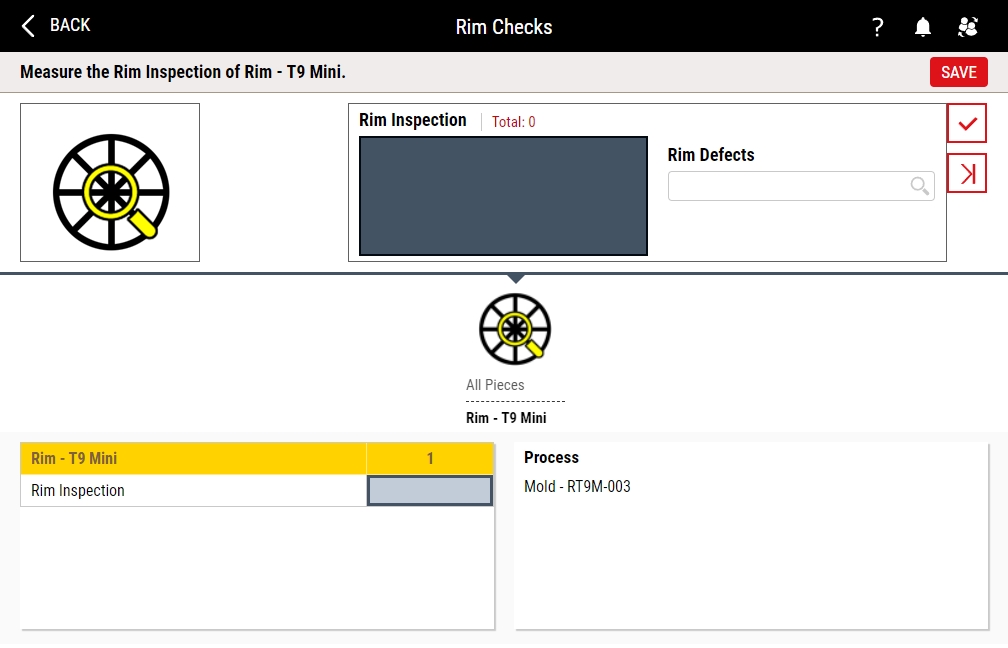

3. Select Rim Checks, and then do the following:

   1. In the process selection dialog box, select Mold - RT9M-003.
   2. In the part selection dialog box, select Rim - T9 Mini.



4. In the Rim Inspection data field, type 3 and press ENTER, and in the Rim Defects drop-down list, select Incorrect Spokes, and press ENTER.
5. Repeat the above step for 2 and Scratch.
6. Select Save.
