Collecting Data

1. Select Access Menu and then select Dashboard.
2. (If necessary) In the dashboard, select Select Dashboard , and then select Work Dashboard .

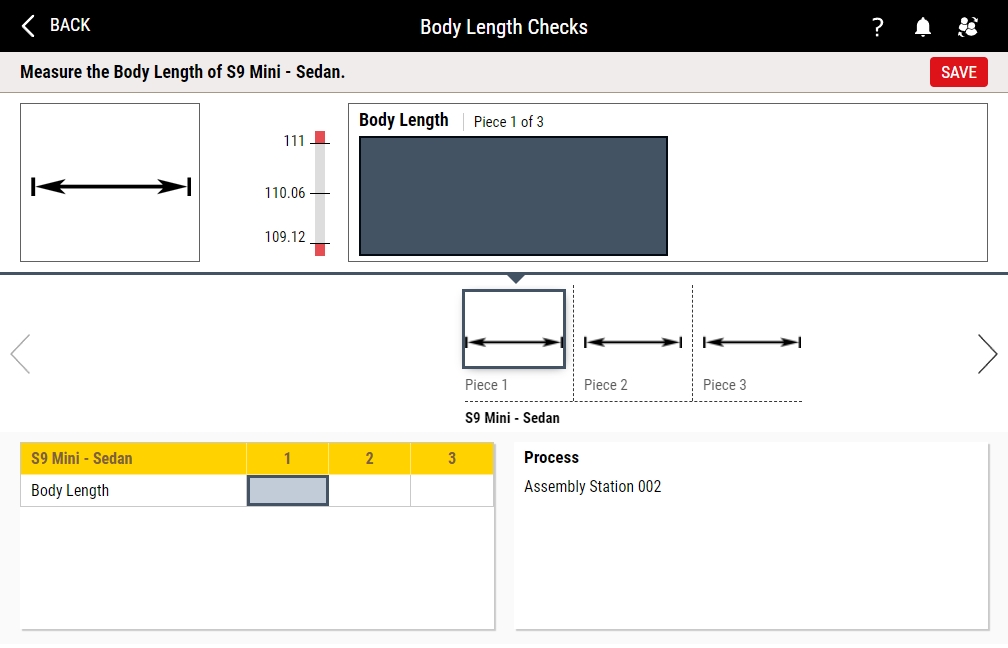

3. Select Body Length Checks, and then do the following:

   1. In the process selection dialog box, select Assembly Station 002.
   2. In the part selection dialog box, select S9 Mini - Sedan.



4. In the Body Length data field, type the following, pressing ENTER after each value:

   • 110.455
   • 109.865
   • 110.077
5. Select Save.
