Collecting Data

  1. Select Access Menu and then select Dashboard.
  2. (If necessary) In the dashboard, select Select Dashboard, and then select Work Dashboard.

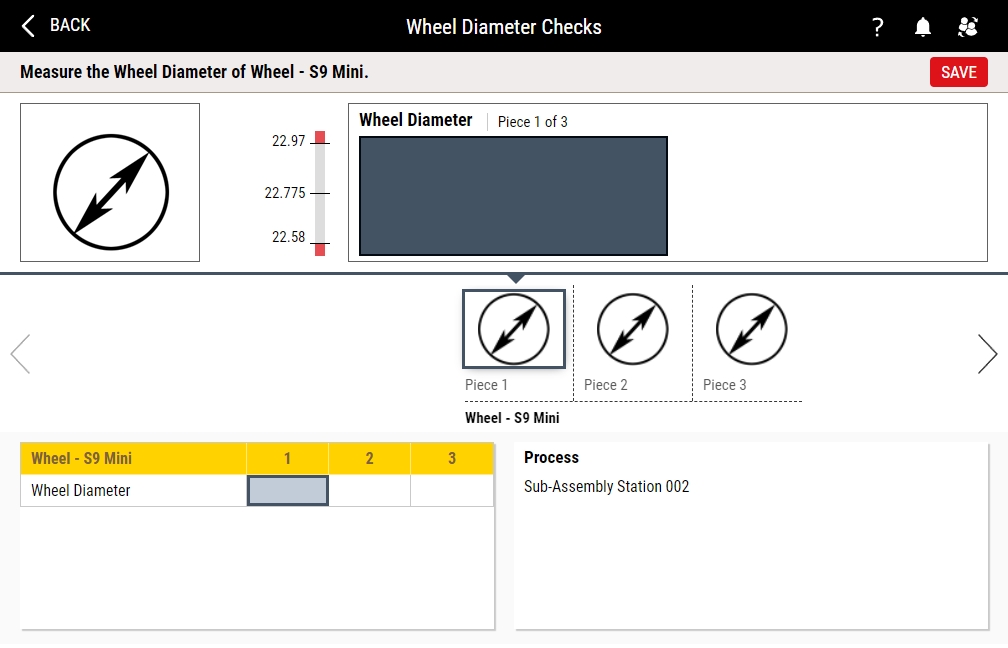

  3. Select Wheel Diameter Checks, and then do the following:

    1. In the process selection dialog box, select Sub-Assembly Station 002.
    2. In the part selection dialog box, select Wheel - S9 Mini.

  4. In the Wheel Diameter data field, type the following, pressing ENTER after each value:

    • 22.888
    • 22.674
    • 22.965
  5. Select Save.


Next Step: S9 Tutorial 7
