Collecting Data

1. Select Access Menu and then select Dashboard.
2. (If necessary) In the dashboard, select Select Dashboard , and then select Work Dashboard .

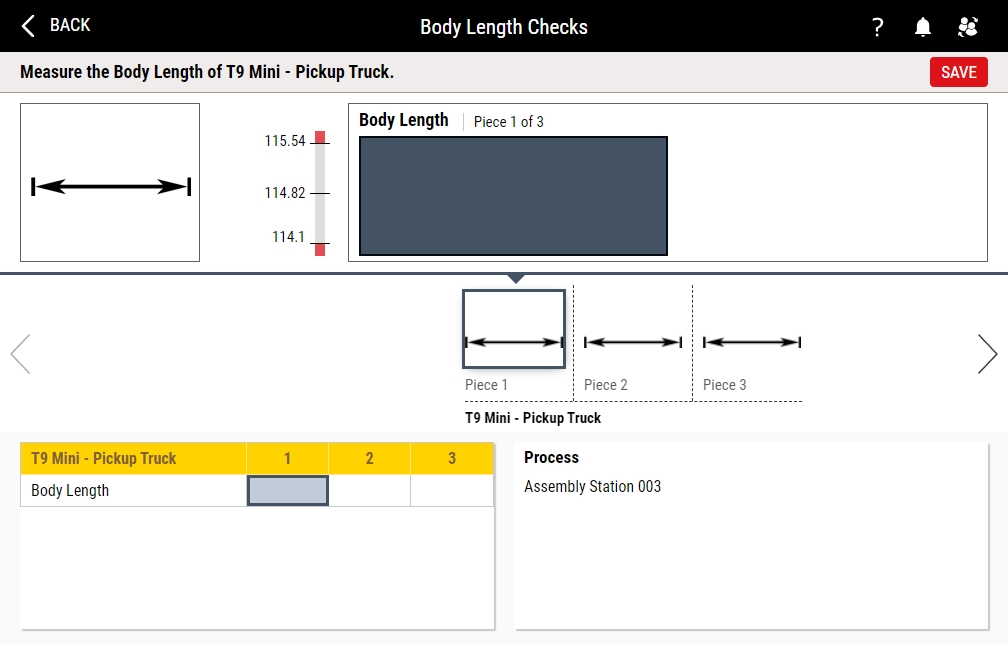

3. Select Body Length Checks, and then do the following:

   1. In the process selection dialog box, select Assembly Station 003.
   2. In the part selection dialog box, select T9 Mini - Pickup Truck.



4. In the Body Length data field, type the following, pressing ENTER after each value:

   • 115.416
   • 115.535
   • 114.326
5. Select Save.
