Collecting Data

1. Select Access Menu and then select Dashboard.
2. (If necessary) In the dashboard, select Select Dashboard , and then select Work Dashboard .

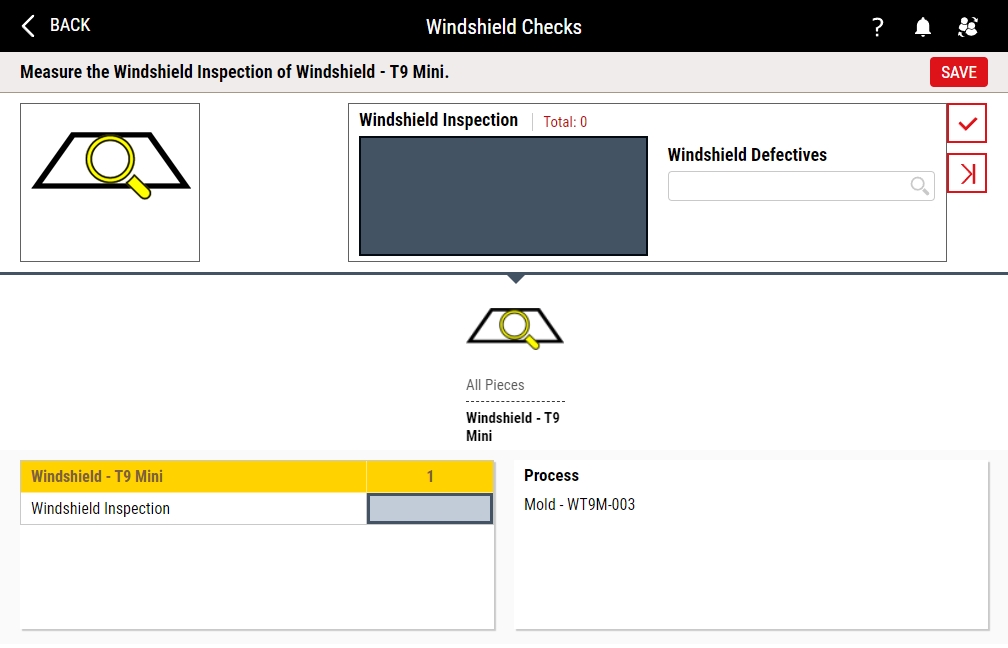

3. Select Windshield Checks, and then do the following:

   1. In the process selection dialog box, select Mold - WT9M-003.
   2. In the part selection dialog box, select Windshield - T9 Mini.



4. In the Windshield Checks data field, type 1 and press ENTER, and in the Windshield Defectives drop-down list, select Bent, and press ENTER.
5. Repeat the above step for 2 and Warped, and in the Defective continue prompt, select OK.
6. Select Save.

Next Step: T9 Tutorial 12
